Circular ("Kodom") swimlane plot for longitudinal trajectories

geom_kodom_circular.Rd

Draws a radial plot where each subject occupies an angular spoke and time increases outward from the center. Measurements are encoded as a colour gradient along each radial path, interpolated between consecutive observations. The layout resembles a Kadam flower (Neolamarckia cadamba), giving the package its name.

Usage

geom_kodom_circular(
  mapping = NULL,
  data = NULL,
  stat = StatKodomCircular,
  position = "identity",
  ...,
  sort_by = "none",
  n_max = Inf,
  gap_fraction = 0.15,
  inner_fraction = 0.3,
  direction = 1L,
  show_points = TRUE,
  reference_rings = c(0),
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by ggplot2::aes().

data

A data frame. If NULL, inherits from the plot.

stat

The stat to use. Defaults to StatKodomCircular.

position

Position adjustment, almost always "identity".

...

Other arguments passed to ggplot2::layer().

sort_by

Lane ordering (angular order). One of "none" (default), "mean", "mean_asc", "first", "last".

n_max

Maximum number of subjects to display. Default Inf.

gap_fraction

Fraction of the full circle left empty as a visual gap at the ordering seam. Default 0.15.

inner_fraction

Fraction of the time range used as a hollow inner buffer so short-follow-up subjects remain visible. Default 0.3.

direction

1L = clockwise (default), -1L = counter-clockwise.

show_points

If TRUE (default), draws a point at every observation. Set to FALSE, or map shape = NA / size = 0, to suppress points.

reference_rings

Numeric vector of time points where concentric reference rings should be drawn behind the data paths. By default, draws a ring at 0 (baseline). Set to NULL to suppress rings.

na.rm

If TRUE, silently remove rows with missing required aesthetics.

show.legend

Logical. Should this layer appear in the legend?

inherit.aes

If FALSE, overrides the default aesthetics.

Value

A ggplot2 layer object.

Details

Unlike the original coord_polar() variant in the archive package, this geom performs the polar-to-Cartesian transform inside the stat and renders in ordinary Cartesian space, so all ggplot2 scales, themes, and facets work normally. Use coord_fixed() to preserve the circular shape.

Aesthetics

Required aesthetics are shown in bold. size and linewidth are intentionally independent: each controls a different graphical element.

  • x — time variable (numeric); mapped to radial distance

  • id — subject identifier; mapped to angular position

  • colour — color of both the connecting path and the point border

  • fill — point interior color for filled shapes (21–25)

  • size — point size only; set to NA or 0 to suppress points

  • linewidth — path width only

  • alpha — transparency applied to both path and points

  • shape — point shape (default 19). Set to NA to suppress points.

  • stroke, linetype — point border width / path line type

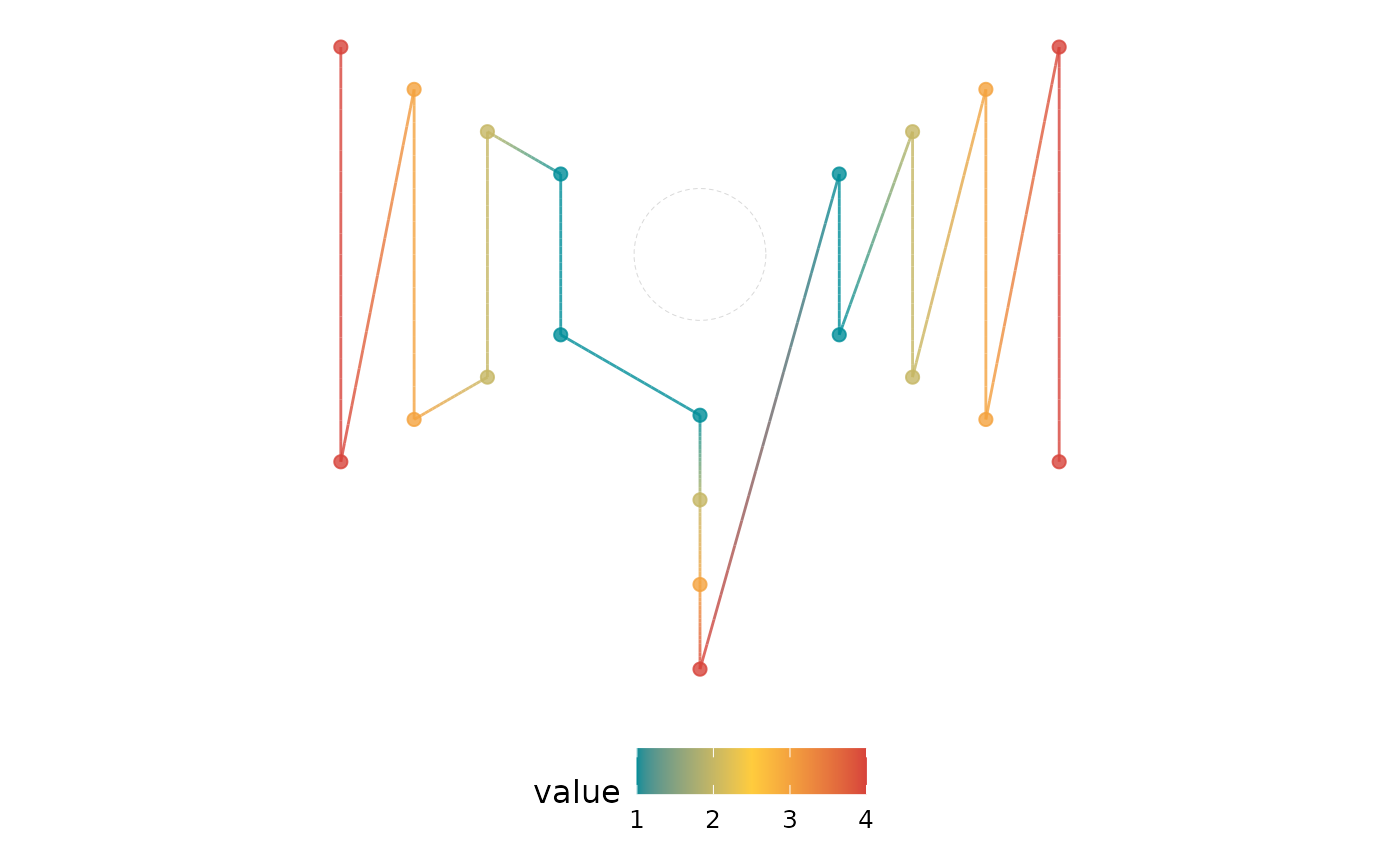

Examples

# \donttest{
library(ggplot2)
df <- data.frame(
  subject_id = rep(1:5, each = 4),
  time = rep(1:4, 5),
  visit_month = rep(1:4, 5),
  value = rep(1:4, 5),
  hba1c = rep(1:4, 5),
  arm = rep(c("Treatment", "Control"), c(12, 8))
)
ggplot(df, aes(x = time, id = subject_id, colour = hba1c)) +
  geom_kodom_circular(sort_by = "mean", gap_fraction = 0.1) +
  scale_colour_kodom() +
  coord_fixed() +
  theme_kodom_circular()

# }
